Description:
Reflective photoelectric switch is sort of USB switch which can customized, like a standard HID Keyboard and Mouse. It can be settled with supplied Software. Function of Switch could be customized arbitrary keys, combination, Mouse or string as you like. You can use it freely without software support after settlement.

Features:
- It is convenient and quick: Compatible with standard H keyboard and mouse It can be customized to any button, combination, mouse or string depending on software settings. Once defined, no software is required during use.
- Widely used in printer copiers, games, factory testing, machine control, equipment, device etc, mobile monitoring, close switch monitoring, and inconvenient use of mechanical switches to improve efficiency
- After setting the button definition, you can use the following almost any OSs.
- Reflective Photoelectric Switch is a customizable U button.
- Application: Photocopier, Printer, Game, Factory Test, Machine Control, Medical Equipment

Software Instructions:
1 Connecting to computer with USB line and run the software
2 Customized Key Function (Enter the function you want in key box, or directly choose Mouse or character string function on the right part, then click ”save”. When you prompted with a notice of successful message, it means the setup done.
3 Trigger distance setup: Click “key Trigger Value” and drag slidder on the left of setup window, click “save” after setup complete with notice.

This accessory is compatible with:

*** Please check the SPECIFICATIONS at the bottom of the page for models did not include in the list below ***

- Dos / Win 2000 / Win XP / Win vista / Win 7 / Win 8 / Win 10 / Linux / Mac...

- Do not see your device on this list? PLEASE feel free to contact us. We will be happy to assist you.

*** or check the specification below carefully to see if your device is compatible or not, more new models may just have not yet included in the list ***

Colors Available:
- Black

Notes:
- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only.
- Photo attached is for reference only, it may be slightly varied in items of color, shape from the actual item delivered from time to time).
- Please use white, smooth reflective object with reflective material for a better user experience.

Manufacturer's Information:
- Brand: Generic / OEM

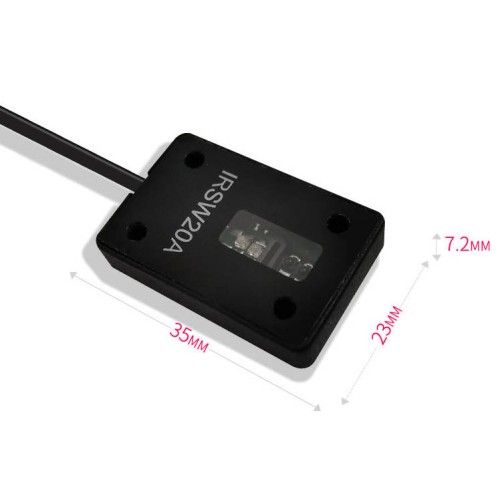

Specifications:
- Connector / Port 1: USB A male
- Trigger distance range:8-30mm.
- Supported OSs: Dos/Win 2000/Win XP/Win vista/Win 7/Win 8/Win 10/Linux/Mac
- Working Voltage: DC5V
- Working Current: <30mA
- Cable Length:2m
- Net Weight:

Package Includes:
- HID USB Self-Defined Optical Photoelectric Sensor Switch Diffuse Reflective Controller x 1

Packaging:
- Polybag
