Simply drill a hole, insert the connector, tighten it down, and you immediately get a rugged USB-C port that delivers ultra‑fast 10Gbps data transfers and 5A power delivery-all while keeping your electronics completely sealed from moisture, dust, and dirt.

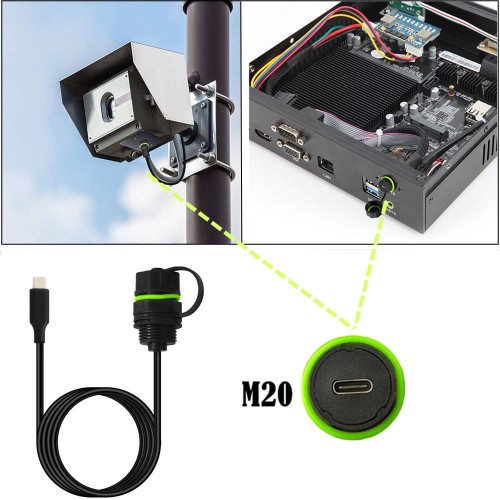

Upgrade your in‑vehicle or outdoor setup with this IP68 waterproof USB 3.1 Type‑C male‑to‑female panel mount extension cable. Designed for harsh environments, it lets you mount a secure, watertight USB‑C port onto any dashboard, panel, or enclosure. Ideal for cars, boats, motorcycles, RVs, industrial computers, outdoor networking equipment, and more.

Key Features:

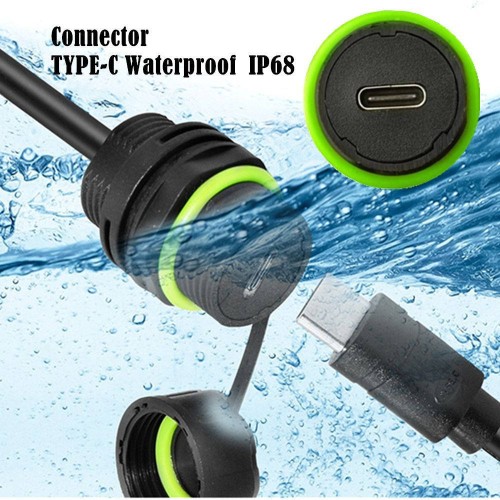

- True IP68 Waterproof Protection: Silicone sealing ring + clamping nut keep moisture, dust, rain and insects out (with waterproof cap fitted). Perfect for outdoor and marine use.
- Ultra‑Fast 10Gbps Data Transfer: USB 3.1 Gen 2 compliant. Transfer large 4K videos or backups in seconds. Backward compatible with USB 3.0/2.0 devices.
- 5A Fast Charging Support: Delivers up to 5A current via USB‑C input to charge your tablet, smartphone, dashcam or other devices quickly.
- Rugged & Durable Build: Nylon PA66 housing provides excellent mechanical strength, flame retardancy and corrosion resistance. Shielded PVC copper cable resists pulling, bending and daily wear.
- Panel / Flush Mount Design: Mounts flush onto any flat surface (dashboard, console, junction box, etc.). No tools required - simple plug‑and‑play installation.
- Universal Compatibility: Works with any device that has a USB‑C port (laptops, tablets, smartphones, GPS units, marine electronics, industrial PCs, scanners, cameras, etc.).

Common Applications:
- Automotive setups (cars, trucks, motorcycles, boats, yachts)
- Marine and RV installations
- Industrial control panels and enclosures
- Outdoor kiosks, weatherproof cabinets, and equipment
- DIY projects requiring permanent, protected USB-C access
- Laptops, tablets, smartphones, GPS units, marine electronics, industrial PCs, scanners, cameras, etc.

Colors Available:
- Generic (Please refer to the pictures shown)
- Black

Manufacturer's Information:
- Brand: Generic / OEM

Specifications:
- Connector Type: USB Type‑C 3.1 Male to USB Type‑C 3.1 Female
- Waterproof Rating: IP68 (with waterproof/dust cap)
- Data Transfer Speed: Up to 10 Gbps (theoretical; actual speed depends on host and device)
- Rated Current: 5A
- Rated Voltage: 12V
- Insulation Resistance: >500MΩ
- Dielectric Strength: AC 1000V for 1 minute
- Contact Resistance: <10mΩ
- Housing Material:  Nylon PA66 (flame retardant)
- Contact Plating: Nickel‑plated phosphor bronze alloy; gold‑plated contacts (6µ")
- Waterproof Seal: Silicone rubber ring
- Cable Type: Shielded PVC copper wire

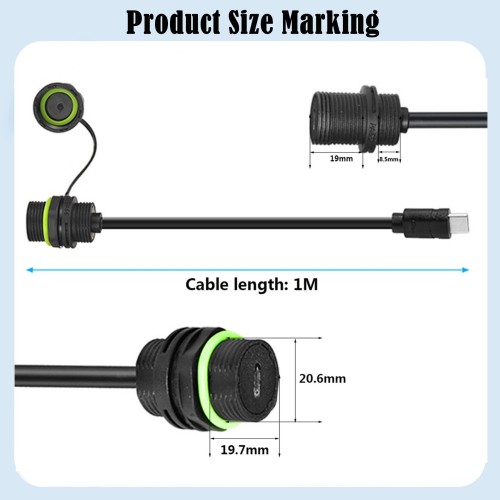

- Cable Length: 1 meter / 3.3ft approx.

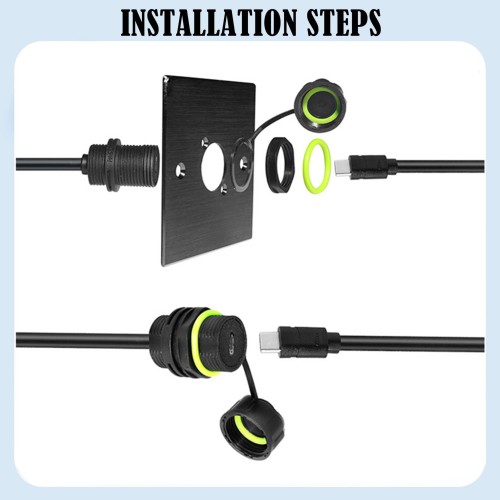

- Installation: Panel / flush mount, no tools required
- Weight: 46g approx.

What's the box?

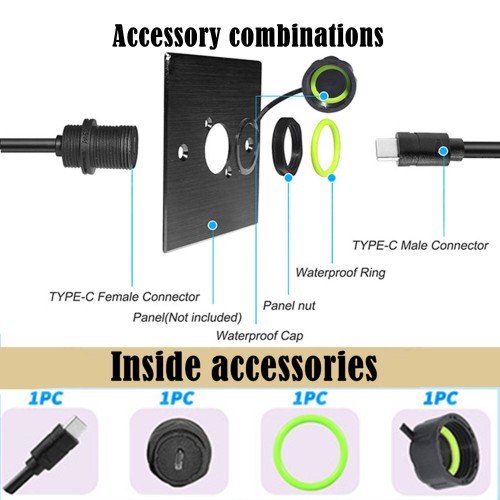

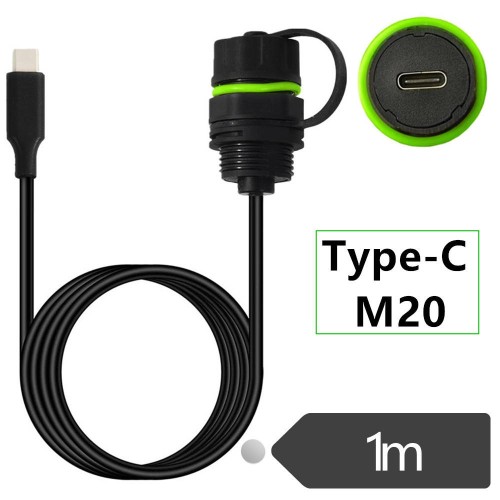

- IP68 Waterproof USB 3.1 M20 Panel Mount Type-C Extension Cable (1 Meter) x 1 set

Packaging:
- Polybag

Notes:
- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only.
- Photo attached is for reference only, it may be slightly varied in items of color, shape from the actual item delivered from time to time).
- Cable standard variance: under 100cm, +/- 5cm; from 101-300cm, +/- 10cm; longer than 301cm, +/- 20cm. The total length will also subject to the length definition. If you need precise length or in very specific ranges, please check with us before purchasing.
- The theoretical maximum data transfer speed of USB 3.1 is 10 Gbps. Achievable speed depends on the connected cable, host device and peripheral being used.
