Features:
- Extend your digital signal up to 500 meter (or 2000 meter, depends on the configuration) Over Coaxial Cable

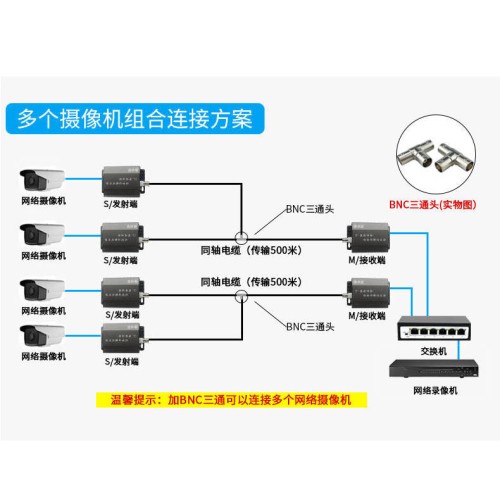

- Can transmits via a switch or directly

Colors Available:
- Black

Notes:
- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only.
- Photo attached is for reference only, it may be slightly varied in items of color, shape from the actual item delivered from time to time)
- You may set the Slave and Master at the module, the same module can be a slave and a master at the same time.

Manufacturer's Information:
- Brand: Generic / OEM

Specifications:

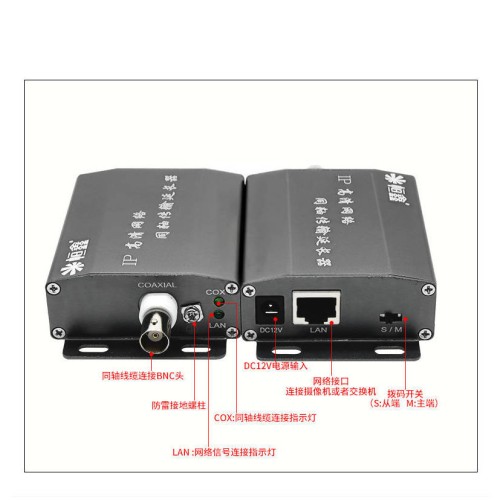

- Connector 1: BNC
- Connector 2: RJ45
- Power Input: 12V
- Power port: 5.5*2.1 Jack
- Power Consumption: <=5W
- Housing: Aluminum

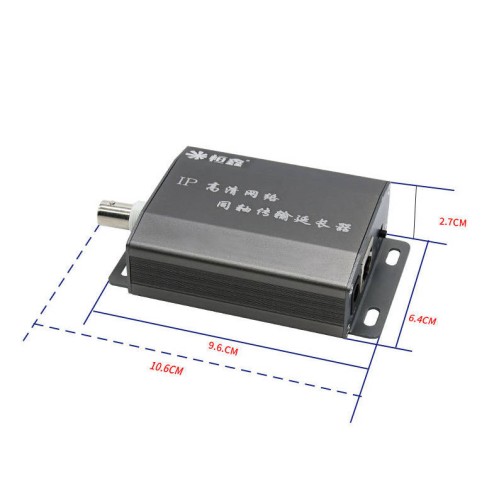

- Product Dimensions: 97*64*25.5mm
- Environmental (Operating Temperature):  -10 to +55 Celsius degree
- Environmental (Storage Temperature): -10 to +55 Celsius degree
- Environmental (Humidity): 0-95% (non-condensing)

Package Includes:
- UTP Digital / IP over Coaxial Cable Transceiver (RJ45 to BNC, BALUN, Extender) x 1 Pair

Packaging:
- White Box
