Description:
ELM 327 is the latest PC-based scan tool. It supports all OBD-II protocols and is dispatched with a number of compatible programs. The processor is an ELM 327. The output protocol (connection to laptop) is USB cable. It is easy to use and very useful to diagnose cars.

OBD-II Soft ware for ELM 327 is a free program that allows you to use your PC and a hardware interface to get the information from your cars computer; OBDii adapter with the reliable advantage of USB cable connection and V1.5 version hardware avoids data corruption and dropped packets.

Functions contains Discover Global Window Feature/Bambi Mod/Secure idle/Perpendicular Park/Trailer Brake Controller/Disabled Double Horn Honk/Disabled Door Ajar Chime/Reverse Tilt Mirrors/Tire Size Correction and many other features.

Compatible systems: Software support platform: Windows 11, Windows 10, XP, Windows 7/8; Compatible software: Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

How to use?
Download the software and CH340T USB driver, connect OBD2 USB adapter to your car, access your chosen ELM327-based software, and begin the vehicle diagnostics. Pls note! Does not work on trailers or semis

Supported Protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

MINI OBDII USB Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others

Colors Available:
- Generic

Notes:
- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only.
- Photo attached is for reference only, it may be slightly varied in items of color, shape from the actual item delivered from time to time).
- We do not support Customer Services to this product, you can buy 1 to test before large order (more than 1 unit). We don't accept neither return nor exchange. If product defect found, we can exchange, but customer needs to ship back at onw costs.

Manufacturer's Information:
- Brand: Generic / OEM

Specifications:
- Communication: USB Interface
- Master Chip: ST
- Driver IC: PL2303
- Support System: Windows
- Working Voltage: 9v ~ 16v
- Working Current: 15mA
- Standby Current: 0mA
- Operating temperature: -40 ℃ ~ 85 ℃
- Working Humidity: less than 60%
- Size: 45mm * 25mm * 75mm（Cable Length 1.5M or 5 feet approx.）
- Net Weight:
- Package Weight:

Package Includes:

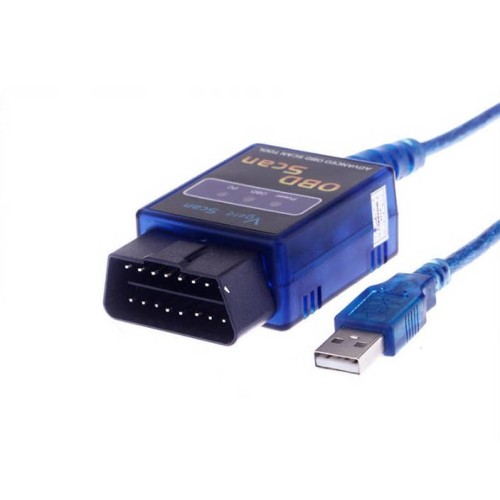

- ELM327 OBD2 USB Adapter for Windows / OBDii Diagnostic Scanner with PIC18F25K80 Chip x 1
- CD drive (or download from our server) x 1

Packaging:
- Polybag
