Description:

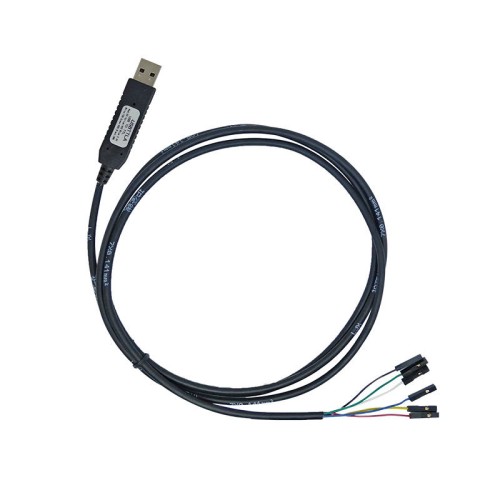

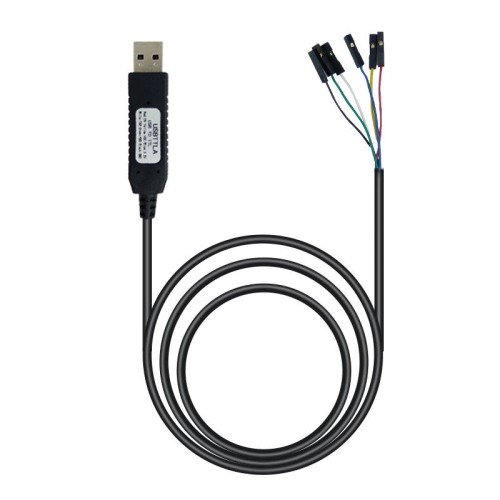

USB to TTL serial cable, using original CH340 chip, hardware full-duplex serial port, built-in transceiver buffer, support communication baud rate 50bps ~ 2Mbps. The application of the serial port is fully compatible with Windows system in computer, and no need to be modified.

Features:

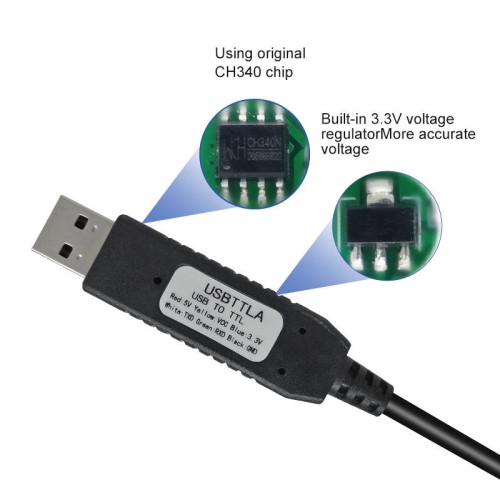

- Using totally new original CH340 chip to replace PL2303, and the compatibility is much enhanced.
- Reserve 5V, 3.3V level for selections, suitable for different applications
- With three-color indication light for easy monitoring: Power indicator (red), TX indicator (green), RX indicator (blue), no guess work and great for debugging!
- The interface uses DuPont terminals, which is easy to debug (customization for terminal interface is available, please contact us)
 The whole product is encapsulated by injection molding, which is dust-proof and moisture-proof, and protects the metal from being touched in case of short circuit.

Applications
- Various satellite set-top boxes
- Router, hard disk, ADSL, broadband cat firmware upgrade or crack upgrade
- Mobile phone, XBOX360, GPS serial communication, car detection, DVD brush, etc.
- Burn STC MCU, NXP MCU, Renesas MCU, NEC MCU, etc.
- Simple serial communication, serial debugging tools that is commonly used in  Hyper Terminal
- Electronic enthusiasts can use it to convert USB signals to TTL signals

Colors Available:
- Black

Notes:
- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only.
- Photo attached is for reference only, it may be slightly varied in items of color, shape from the actual item delivered from time to time).

Manufacturer's Information:
- Brand: Generic / OEM

Specifications:
- Connector / Port 1: USB-A
- Connector / Port 2: DuPont terminals
- Length: 1.5 meters / 5 feet

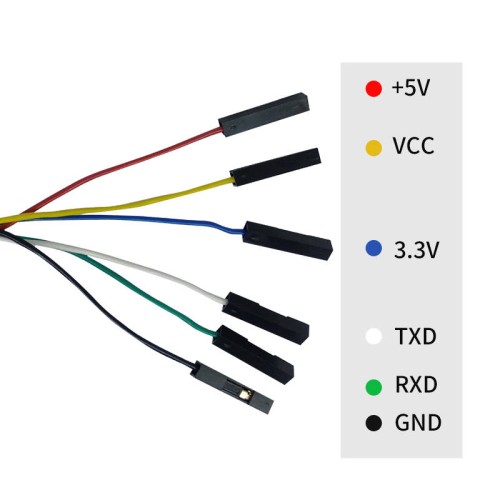

- LED Indicators: Power indicator (Red), TX indicator (Green), RX indicator (Blue)
- Net Weight: g approx.
- Product Type: TTL Data Cable

Package Includes:
- USB to TTL serial 3.3V / 5V adapter with LED indicators (CH340 chipset used) x 1

Packaging:
- Polybag
