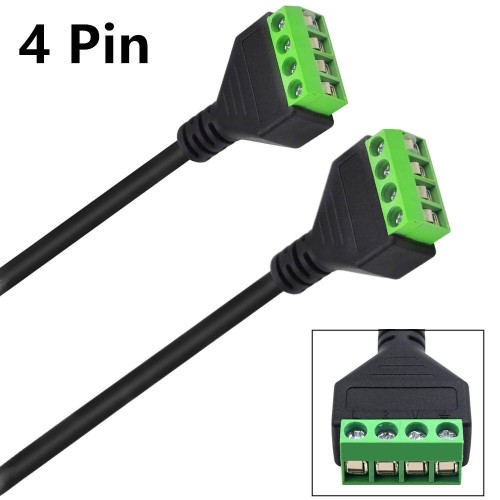

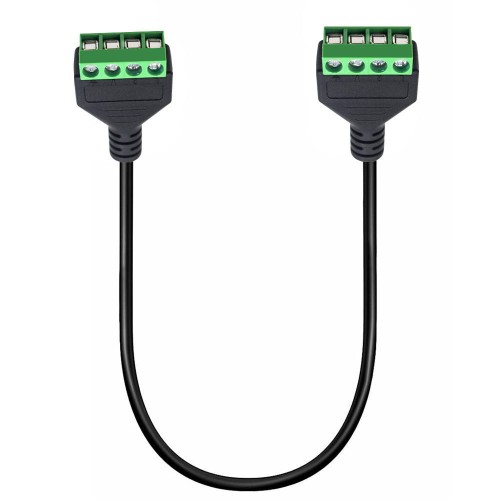

This 4-pin female-to-female converter cable is designed for solderless field termination in low-voltage data, signal, and charging applications. Both ends are terminated with screw-fixed female terminal blocks, allowing conductors to be stripped, inserted, and secured with a standard screwdriver - no soldering equipment, flux, or permanent joint required..

The assembly uses a copper-core conductor with a 4.0 mm OD jacket and a nominal 0.3 m length, making it suitable for compact enclosures, prototype hardware, repair work, and custom cable runs where a short, reworkable 4-pin connection is preferred. The cable weighs approximately 0.027 kg and is supplied in a 10 × 12 × 1.5 cm package.

Because the connection is screw-fixed rather than soldered, the cable can be reconfigured or reused during maintenance, testing, or design iteration. It is intended for low-voltage signal, data, and charging lines; verify voltage, current, and wire gauge against the specific application requirements.

Key Features:
- Solderless field termination: Screw-fixed terminal blocks on both ends; no soldering iron required.
- Female-to-female 4-pin configuration: Suitable for extending existing runs or bridging terminated wire ends.
- Copper-core conductor: 0.3m nominal length with 4.0 mm OD jacket.
- Reworkable connection: Loosen the terminal screws to replace or reconfigure conductors.
- Compact and lightweight: Approx. 0.027 kg; package size 10 × 12 × 1.5 cm.
- Low-voltage application focus: Data signal transmission, charging extension, DIY electronics, and repair use.

Applications:
Data signal transmission, low-voltage charging, audio wiring, LED connections, DIY electronics, cable extension & repair

Colors Available:
- Generic (Please refer to the pictures shown)

Manufacturer's Information:
- Brand: Generic / OEM

Specifications:
- Type: 4-Pin Screw Terminal Female to 4-Pin Screw Terminal Female
- Length: 30cm / 0.3M
- Cable OD: 4.0mm
- Conductor: Copper core
- Cable Jacket: PVC
- Connection method: Screw terminal (solder-free)
- Weight: approx. 0.026kg
- Packaging size: 10 × 12 × 1.5cm

Perfect for makers, technicians, and DIY enthusiasts who need a fast, clean way to extend or customize 4-pin terminal connections.

What's the box?
- 4 Pin Screw Terminal Female to Female Extension Cable x 1 pc

Packaging:
- Polybag

Notes:
- Photos are for reference only; actual product color/shape may vary slightly.
- All trademarks and brand names are property of their respective owners; used for descriptive purposes only.
- Cable standard variance: under 100cm, +/- 5cm; from 101-300cm, +/- 10cm; longer than 301cm, +/- 20cm. The total length will also subject to the length definition. If you need precise length or in very specific ranges, please check with us before purchasing.
- This cable is intended for low-voltage signal, data, and charging applications. Match wire gauge and voltage/current ratings to your specific device and project requirements.
