Descriptions:

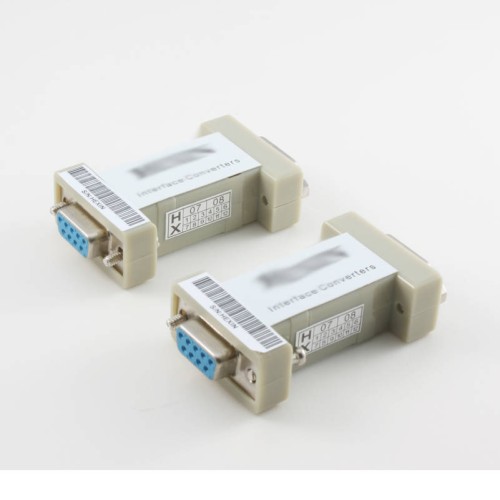

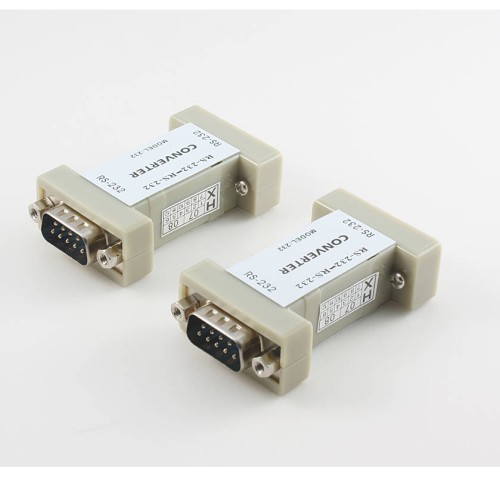

This RS232 Optical Isolation long-line transceiver driver (or long-line transceiver / long-distance optical isolation transceiver / booster / extender) can extend the telecommunication distance of the 2 pieces asynchronous RS-232 equipment max to 12 kilometers with the function of optical isolation.

For it adopts the optical isolation technique electrical equipment and ground loop of the two ends of the RS-232 are completely separated, therefore, it can protect the telecom equipment from the damage and disturbance of power ground wire and surge, and improve the reliability and stability of the system, and change the RS-232 single transmission means to the 2-line parallel transmission to wide the telecom distance.

When you use its own exclusive line of RS-232 asynchronous point-to-point on the field, it can be used for interface protection or the demand of distance extending.

It is ranging from 4-line, 6-line and 8-line connector to power. The 4-line product can send 1 pair of data signals out and 6-line and 9-line products can send 1 or 2 pairs of control signals out beside this.

It requires no special requirement for traverse, no need to connect power outside. It can be directly inserted into RS-232 interface.

It is widely in point-to-point RS232 telecommunication, connection of multi-user terminal and main board. RS-232 remote control system, program-controlled switches billing system and satellite receivers.

General Features:
- Extends the serial port RS-232 telecom distance to 12 kilometers
- Isolation power upto 3500V
- Compliant with RS232 asynchronous telecommunication standard
- Port powered, no additional power required.

Note:
- All trade names are registered trademarks of respective manufacturers listed.

Package Includes:
- RS232 Optical Isolation Long-Line Transceiver / Line Booster x 1 pair
- Instructional Manual x 1 piece

Package:
- Box
